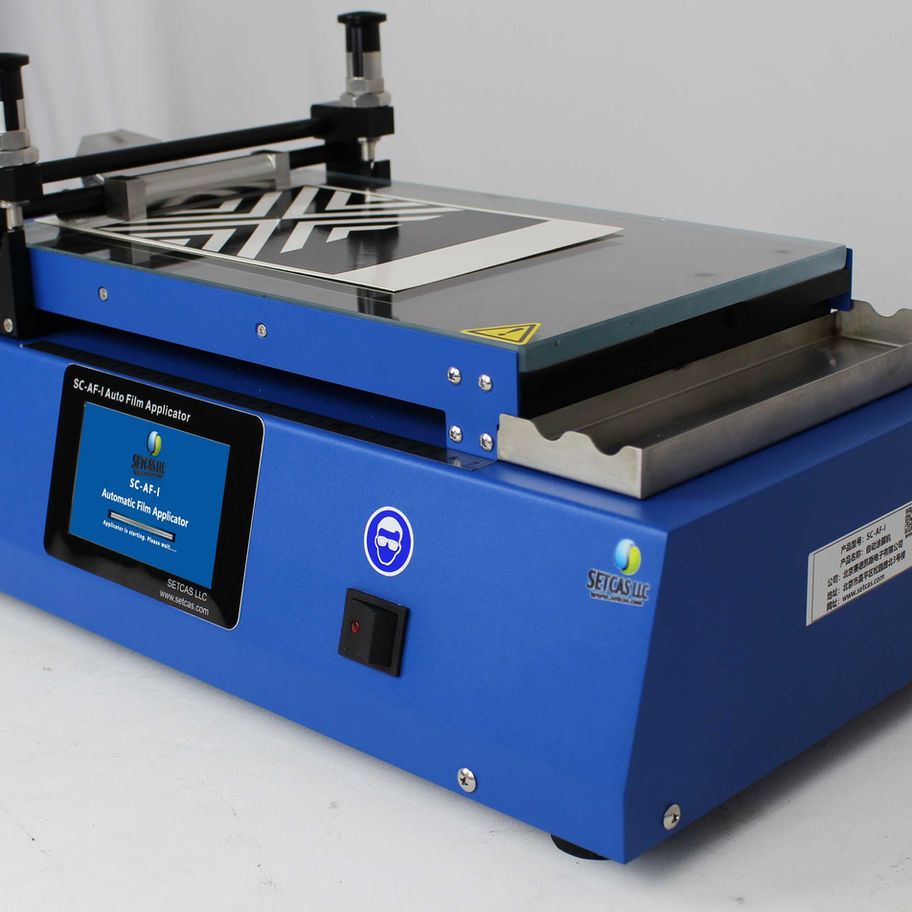

SC-AF-I Auto Film Coater
$5,995.95
Drawdown Speed: 1 – 500 mm/s (Offering an exceptionally wide range for high-viscosity slurries to ultra-thin liquid films).
Speed Resolution: 1 mm/s
Speed Accuracy: ±1 mm/s (Ensuring highly repeatable and vibration-free film casting).
Stage Material: High-flatness precision quartz plate.
Stage Dimensions: 210 mm × 297 mm (Standard A4 format, ideal for standard lab-scale foil or glass substrates).

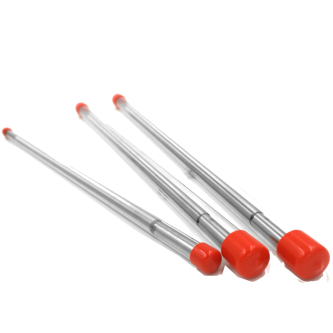

Meyer Bar (Wire-Wound Rod):
Coating Width: 240 mm
Micrometer-Adjustable Doctor Blade:
Coating Width Options: 55 mm / 100 mm / 150 mm
WFT Range: 1 – 3,500 μm (Continuously adjustable for precise gap control).

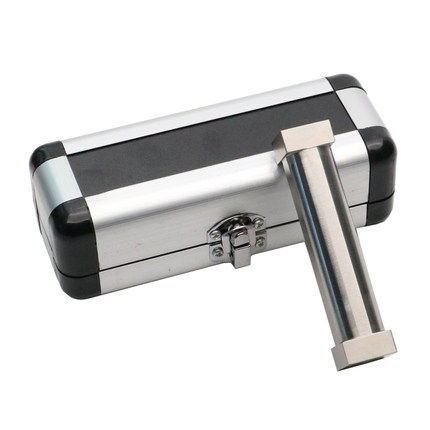

Four-Sided Applicator (Bird-Type):
Coating Width: 80 mm
WFT Range: 5 – 1,000 μm (Pre-machined fixed gaps for rapid, standardized multi-thickness testing).
