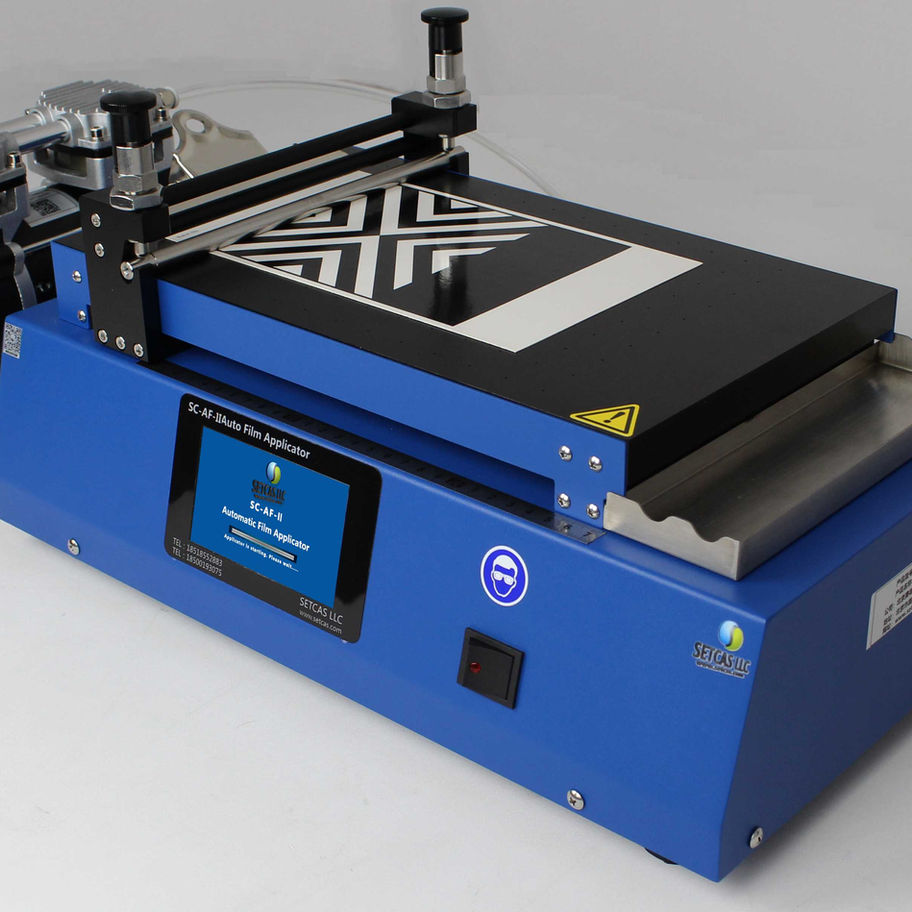

SC-AF-II Auto Film Coater
$8,245.95
Drawdown Speed: 1 – 500 mm/s (Offering an exceptionally wide dynamic range for both high-viscosity slurries and ultra-thin liquid films).
Speed Resolution: 1 mm/s
Speed Accuracy: ±1 mm/s (Ensuring highly repeatable, vibration-free film casting).
Substrate Platform (Selectable Configuration)
Option A: Precision Vacuum Chuck Plate
Dimensions: 210 mm × 297 mm (Standard A4 format).
Designed with high-density vacuum micropores to securely hold flexible foils, separator membranes, or thin substrates flat during drawdown.
Option B: Precision Heated Stage
Thermal Control: Ambient to 200°C.
Engineered for accelerated in-situ drying, optimal ink spreading, and precise control of crystallization kinetics during the coating process.
Applicator Options & Wet Film Thickness (WFT)
Meyer Bar (Wire-Wound Rod):
Coating Width: 240 mm
WFT Range: 4 – 200 μm
Micrometer-Adjustable Doctor Blade:
Coating Width Options: 55 mm / 100 mm / 150 mm
WFT Range: 1 – 3,500 μm (Continuously adjustable for precision gap control).
Four-Sided Applicator (Bird-Type):
Coating Width: 80 mm
WFT Range: 5 – 1,000 μm (Pre-machined fixed gaps for standardized multi-thickness testing).
