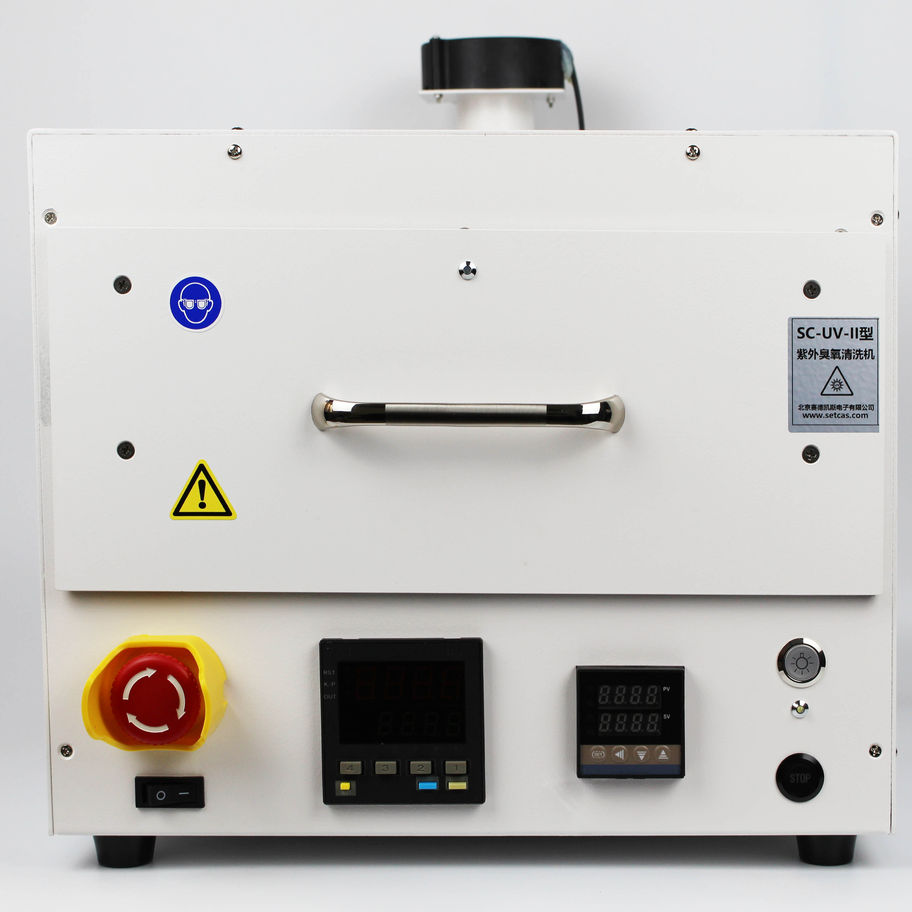

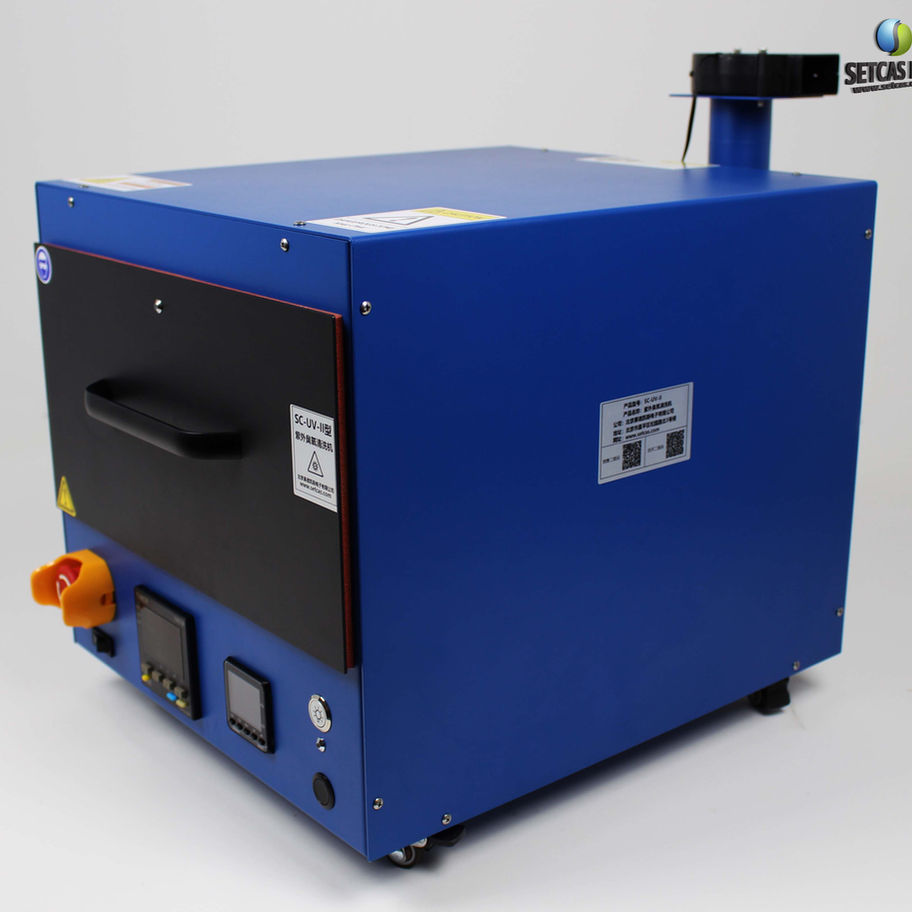

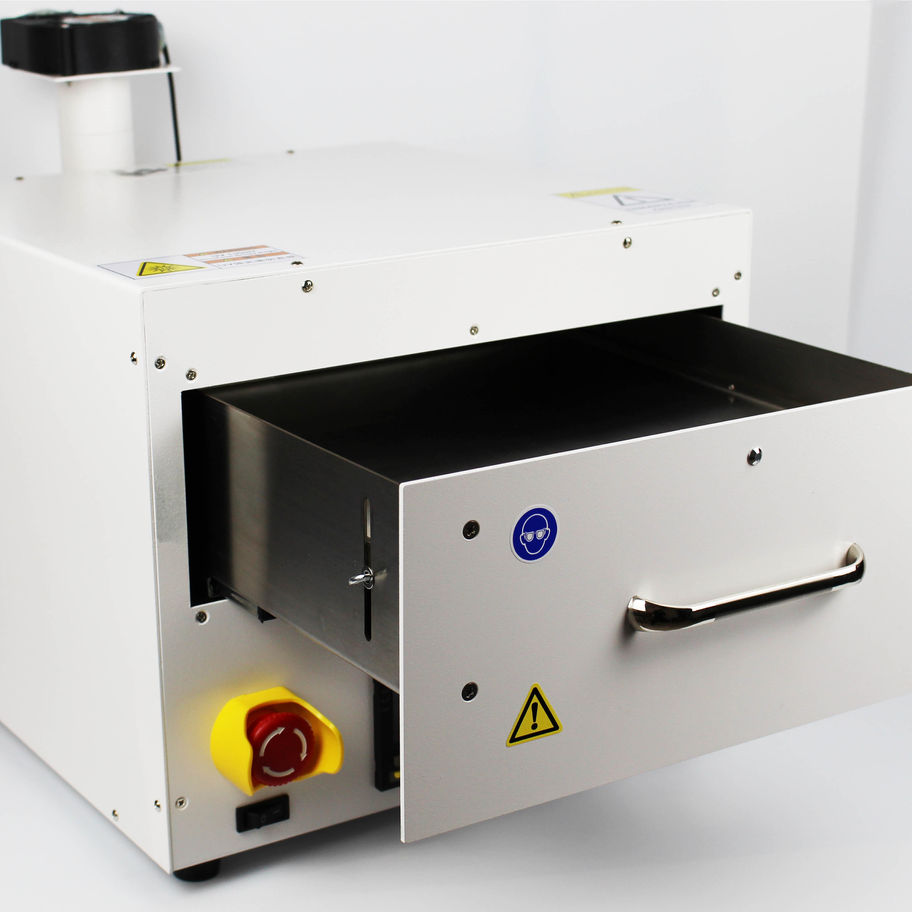

SC-UV-II/II+ Heated UV-Ozone Cleaning System
$13,195.95
Emission Wavelengths: Dual-wavelength (185 nm & 254 nm) for optimal ozone generation and organic decomposition.
Light Source: Two (2) 300W dual-wavelength low-pressure mercury lamps.
UV Intensity: 28 – 32 mW/cm² (Measured at a 3 – 5 mm working distance).
Process & Stage Capabilities
Effective Irradiation Area: 300 mm × 300 mm
Substrate-to-Lamp Distance: 5 – 60 mm (Fully adjustable for varying sample heights).
Thermal Control (SC-UV-II+): Integrated heating from ambient temperature up to 200°C to accelerate the cleaning process and surface modification.
Process Timer: 0 – 99 min 99 sec, featuring an automated digital countdown and automatic process termination.
Quantity
Usage Video
Buyers may select their preferred shipping carrier, including FedEx, UPS, or other air freight services. Shipping fees displayed on the platform are estimates only; final shipping costs are based on actual charges and are the sole responsibility of the buyer.
Lead Time & Order Processing
Orders will be dispatched within 5 working days after payment confirmation, excluding weekends and public holidays. Once shipped, order cancellation or modification is not accepted.
Shipping & Delivery
All import duties, taxes, and customs-related fees are the buyer’s responsibility and will be charged according to the actual amount incurred at destination.
Customs & Import Duties
Returns or refunds for non-quality reasons are not supported. The product comes with a 1-year international warranty. A 2-year extended warranty is available for an additional fee.
