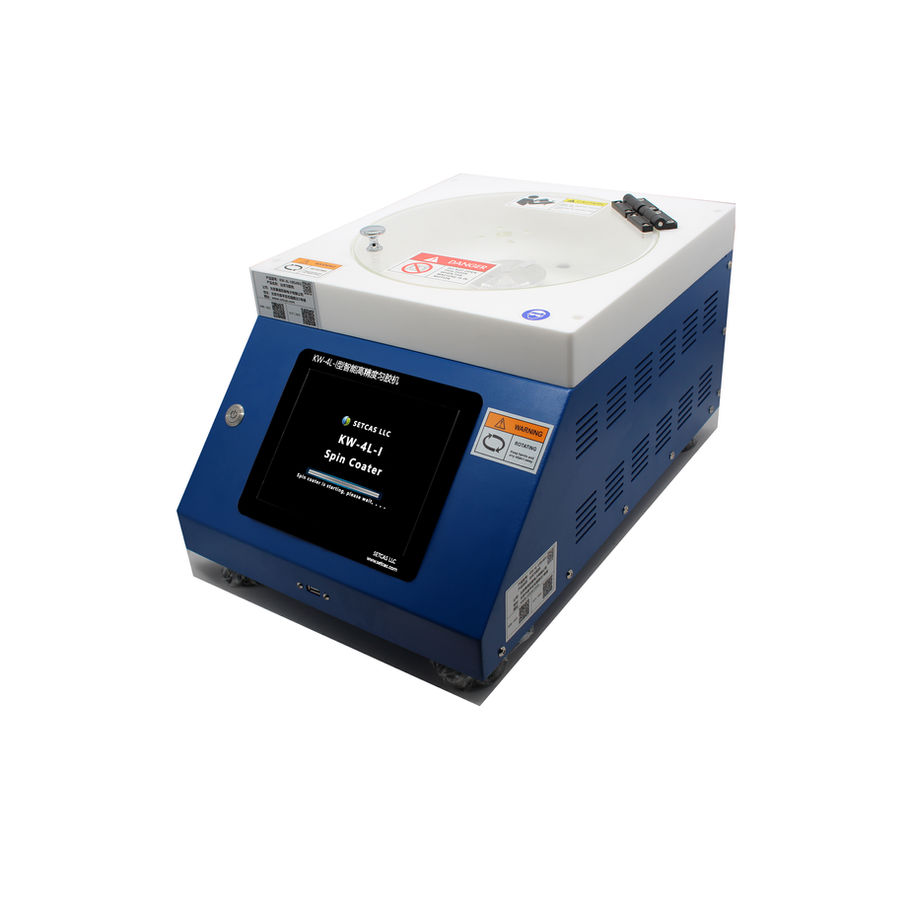

KW-4L-I Spin Coater
$17,995.95
Compatible Substrate Size: 5 - 200 mm (Standard) / up to 600 mm (Optional)
Rotational Speed: 10 - 12,000 RPM (Standard) / up to 20,000 RPM (Optional)
Acceleration: 10 - 30,000 RPM/s
Photoresist Ingress Protection with Alarm: Prevents coating solutions or photoresist from entering the vacuum line/internal mechanics and alerts the user.
Insufficient Vacuum Alarm and Interlock: Detects low vacuum pressure, triggering an alarm and engaging a safety interlock to prevent the machine from starting or continuing operation without a secure substrate hold.
Bidirectional Motor Rotation: Supports both forward and reverse (CW/CCW) spinning.
RS485 Communication Interface: Allows for remote control and data logging, and comes with complimentary remote communication software.
Keyboard and Mouse Compatibility: Supports standard external peripherals for easy recipe programming and interface navigation.
Power-off Protection for Recipes: Safeguards programmed recipes from being lost during unexpected power outages.
Integrated Auto-Dispensing: Enables automated, precise dispensing of photoresist or chemicals during the spin cycle.
Integrated Foot Pedal Support: Allows for hands-free operation to start/stop the spin cycle or dispensing.
Full PTFE Chamber: The entire inner spin chamber is constructed from Polytetrafluoroethylene (PTFE/Teflon) for superior chemical resistance and easy cleaning.
Quantity
Usage Video
Buyers may select their preferred shipping carrier, including FedEx, UPS, or other air freight services. Shipping fees displayed on the platform are estimates only; final shipping costs are based on actual charges and are the sole responsibility of the buyer.
Lead Time & Order Processing
Orders will be dispatched within 5 working days after payment confirmation, excluding weekends and public holidays. Once shipped, order cancellation or modification is not accepted.
Shipping & Delivery
All import duties, taxes, and customs-related fees are the buyer’s responsibility and will be charged according to the actual amount incurred at destination.
Customs & Import Duties
Returns or refunds for non-quality reasons are not supported. The product comes with a 1-year international warranty. A 2-year extended warranty is available for an additional fee.
